Product Functions and Working Details

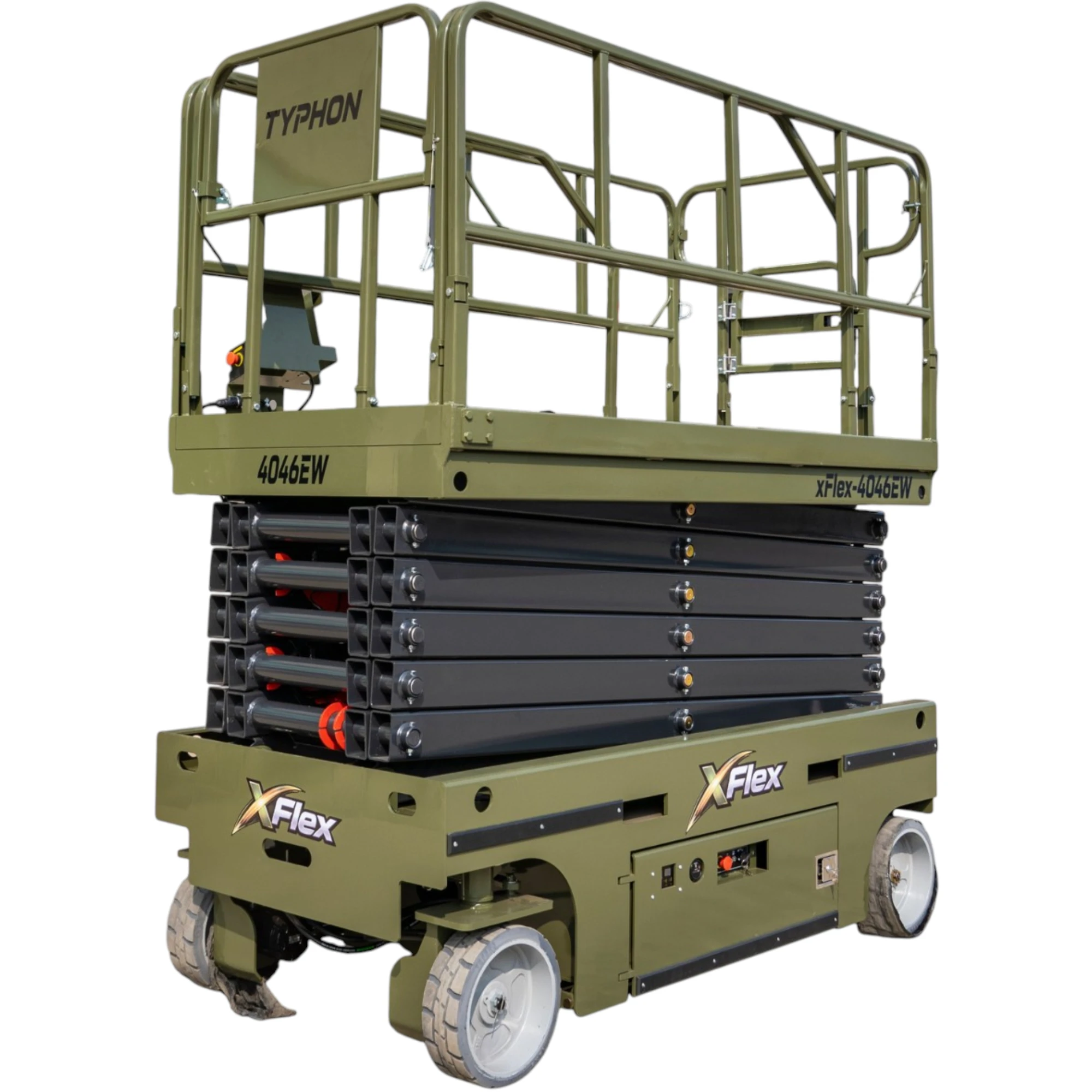

The following product-focused guide outlines the working functions, common applications, and verified technical information for TYPHON xFlex-4046EW Electric Wheel Scissor Lift 2.6 Ton working weight and 40ft platform height with 705lbs Load Capacity without changing the manufacturer’s stated capabilities.

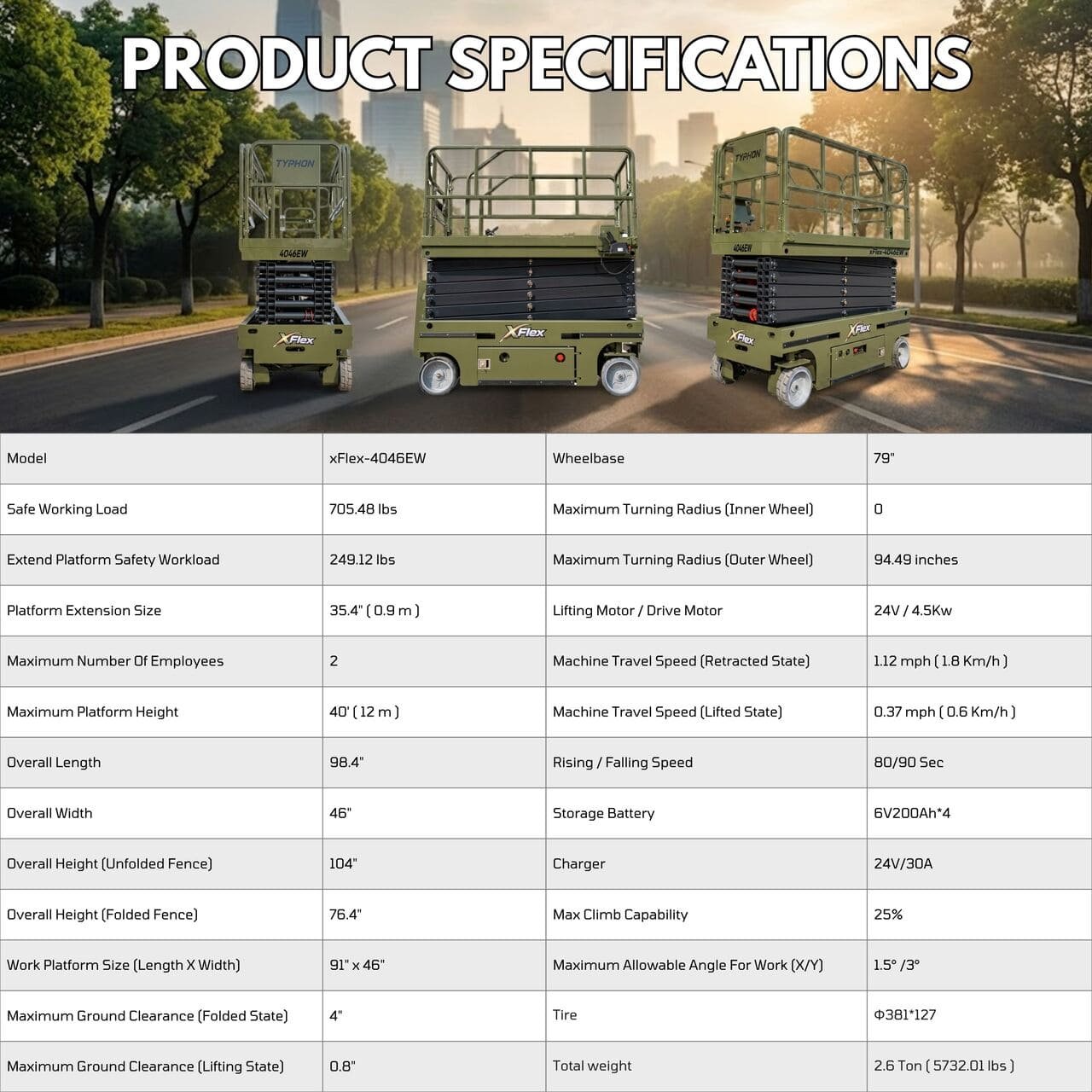

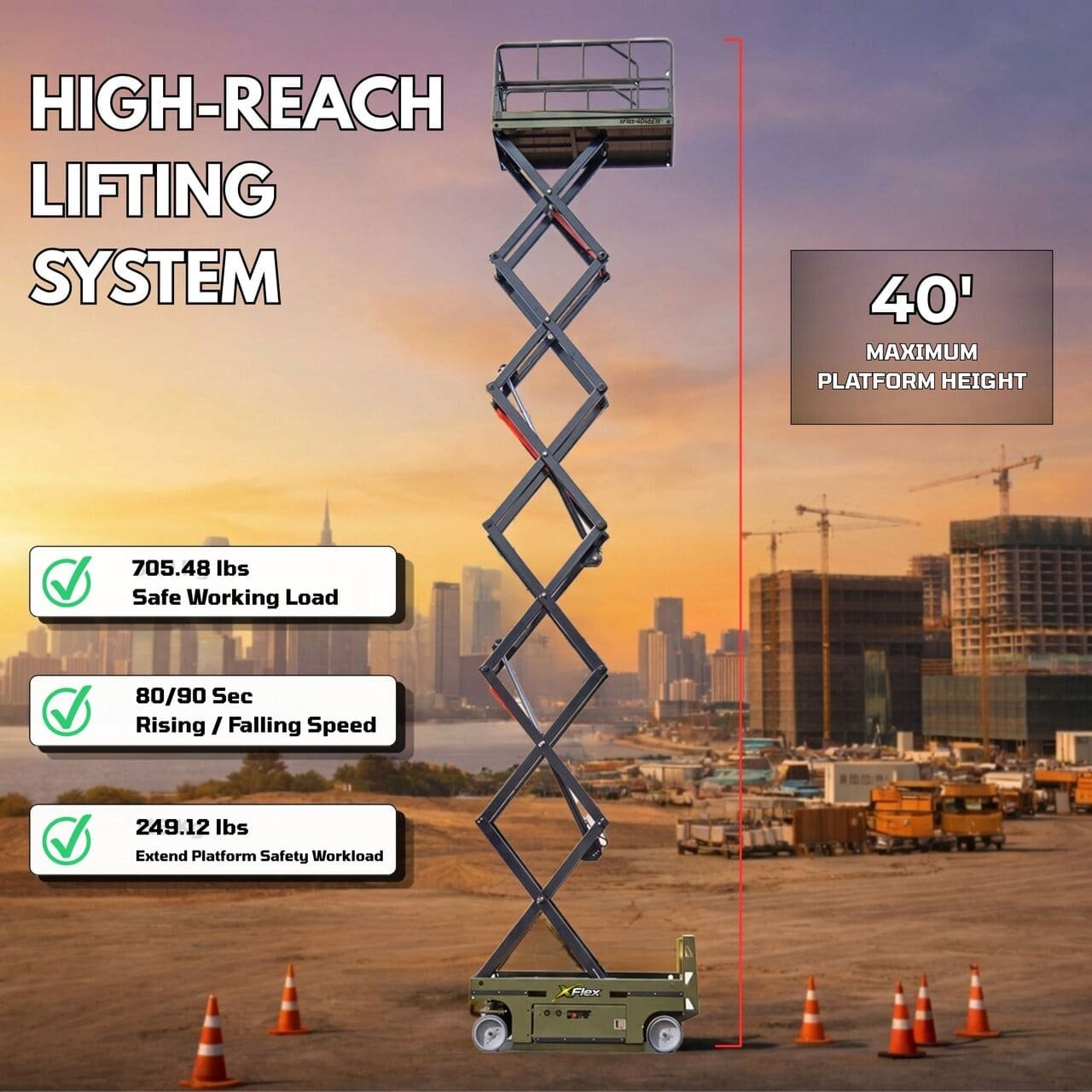

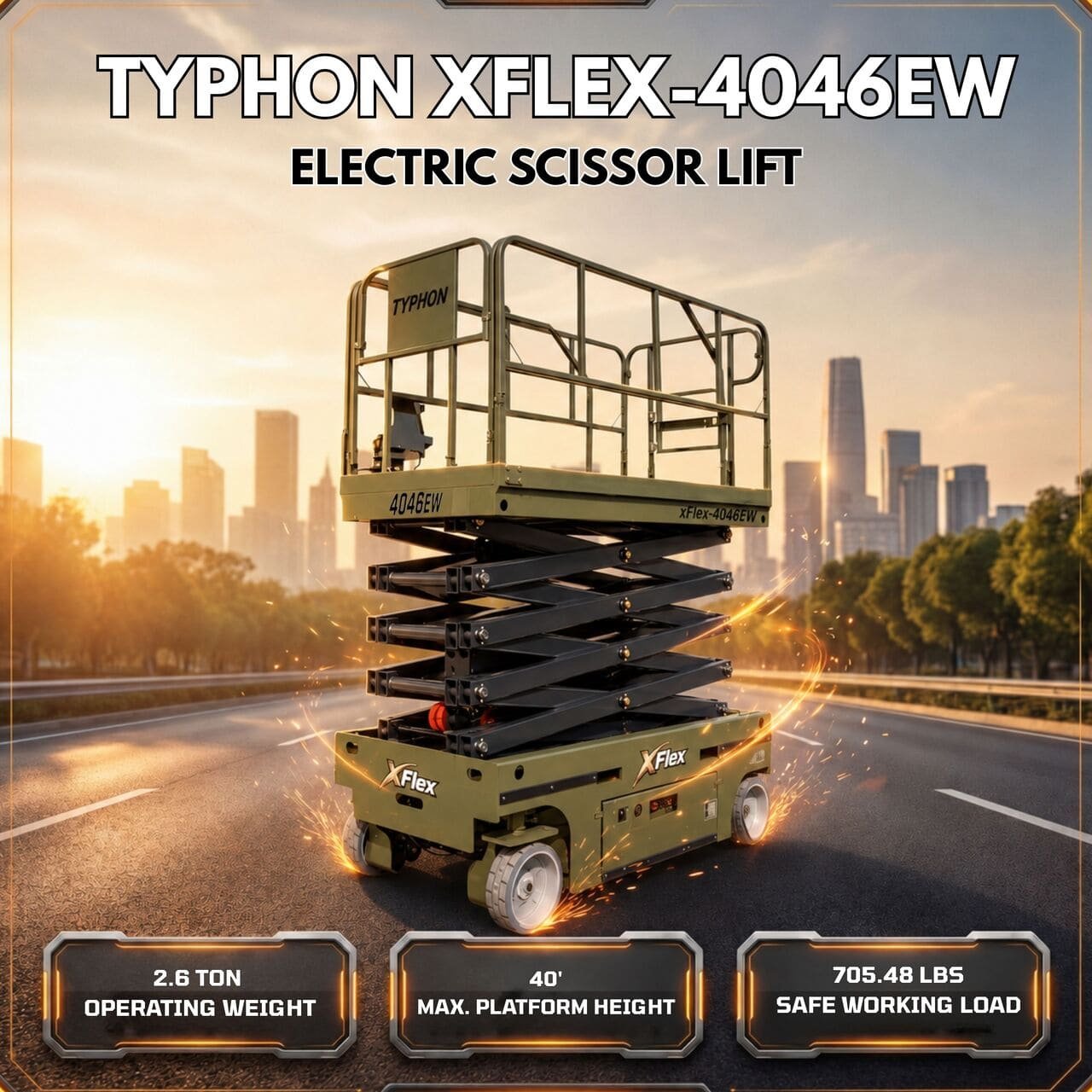

Take your elevated operations to the next level with the TYPHON xFlex-4046EW Electric Wheel Scissor Lift, a powerful, high-reach electric lift engineered for demanding industrial and commercial environments. With a durable 2.6 Ton working weight and an impressive 40 ft platform height, this model is made to support tasks that require extended vertical access without compromising stability or safety.Well suited to warehouses, construction sites, and facility maintenance, the xFlex-4046EW supplies dependable performance, smooth operation, and efficient mobility to keep your team productive at height.1. Reach New Heights with ConfidenceEngineered for superior elevation and precision, this scissor lift supplies a maximum platform height of 40 ft with a safe working load of 705.48 lbs, supporting up to 2 employees with tools and equipment.

The 35.4-inch platform extension, rated at 249.12 lbs, improves access to hard-to-reach areas while maintaining stability and safety. It features an 80–90 second rising/falling cycle for smooth and efficient operation. Overall height is 76.4-inch with the fence folded, and 104-inch unfolded, ensuring flexible transport, convenient storage, and reliable working performance on demanding job sites.2.

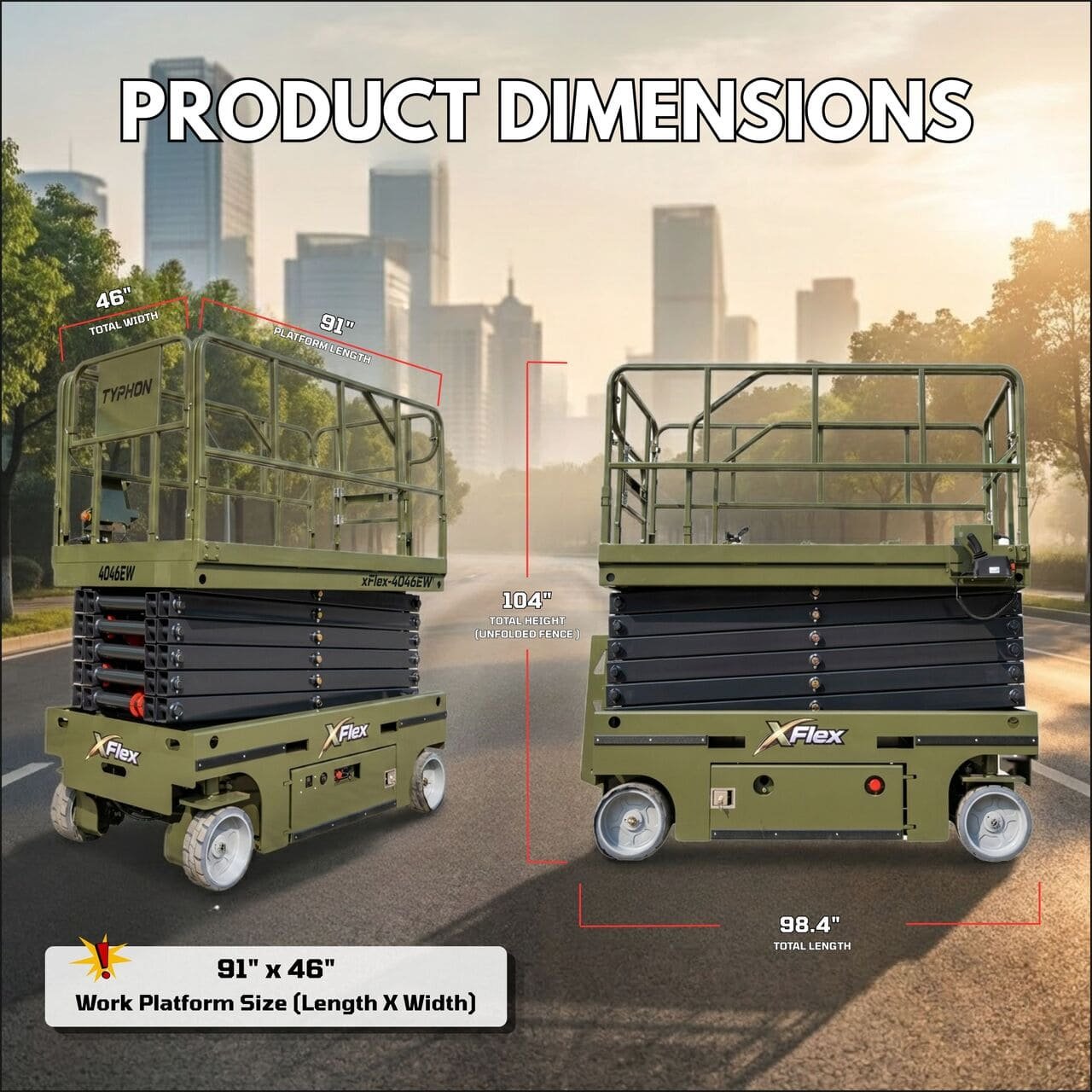

Superior Maneuverability in Tight SpacesMaking it the perfect solution for tight indoor and outdoor work environments. With a work platform size of just 91-inch (L) × 46-inch (W), this lift easily navigates narrow aisles and congested job sites. A 79-inch wheelbase improves stability and handling, while the 4-inch maximum ground clearance in the folded state helps tackle uneven terrain.

During lifting operations, the platform maintains a 0.8-inch ground clearance for safe performance. Its zero inner turning radius enables precise maneuvering in confined spaces, while the 94.49-inch outer turning radius supplies smooth directional control. Built for real-world conditions, it features 25% gradeability for ramps and slopes, plus a max working angle of 1.5° / 3° (X/Y) for enhanced stability and operator confidence.3.

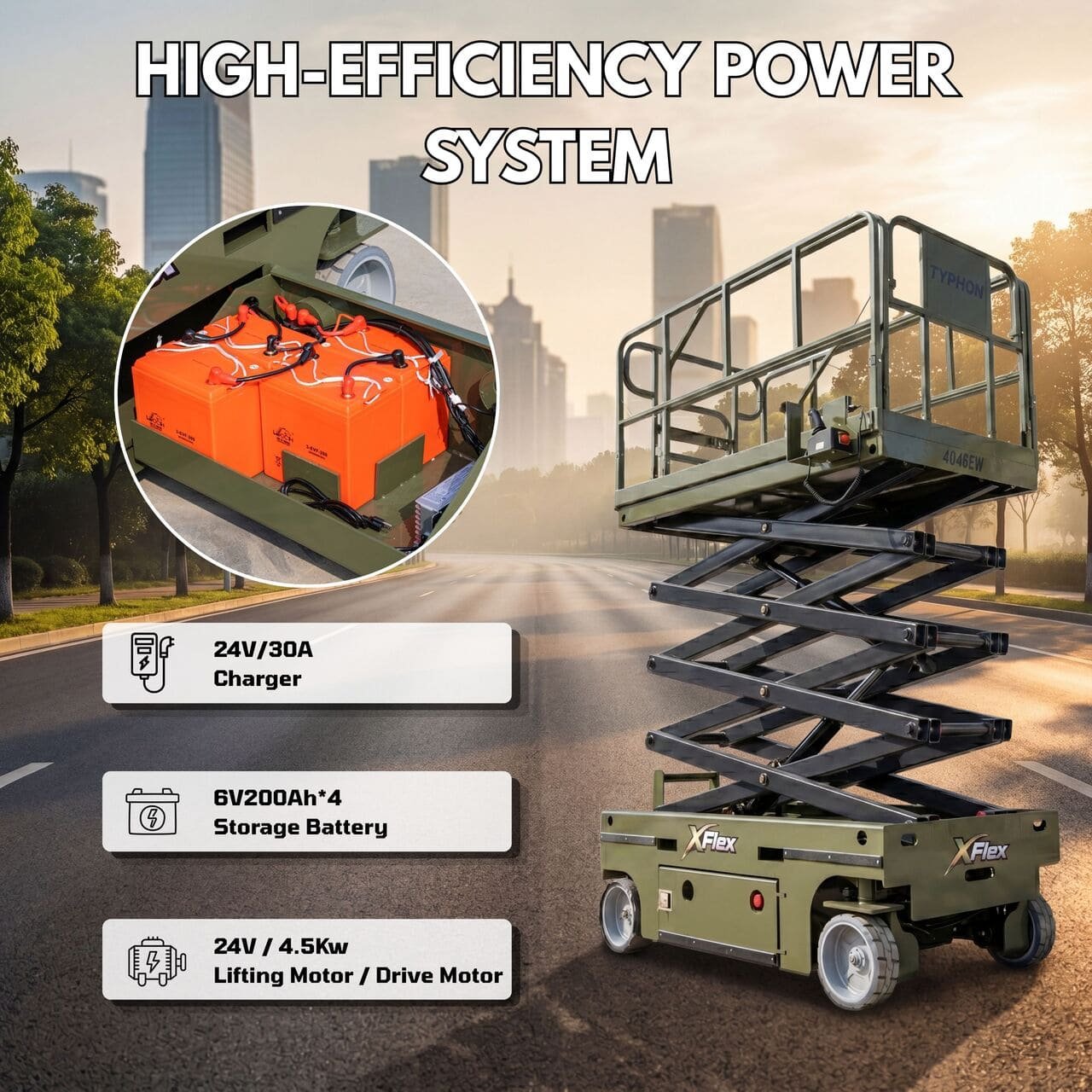

Premium Power and Lasting PerformanceBuilt to keep your operations running smoothly all day. Equipped with a 24V / 4.5 kW lifting and drive motor, it supplies consistent, energy-efficient performance across demanding tasks. The lift travels at 0.37 mph when retracted and 1.12 mph when elevated, ensuring both speed and safety on the job.

Its robust battery system, featuring 4 × 6V / 200Ah units, supplies reliable endurance, while the 24V / 30A charger supports efficient recharging with minimal downtime. Charging time is approximately 6–7 hours, delivering a working time of 6–8 hours on a full charge. Engineered for durability and productivity, this machine is ready to perform whenever you are.4.

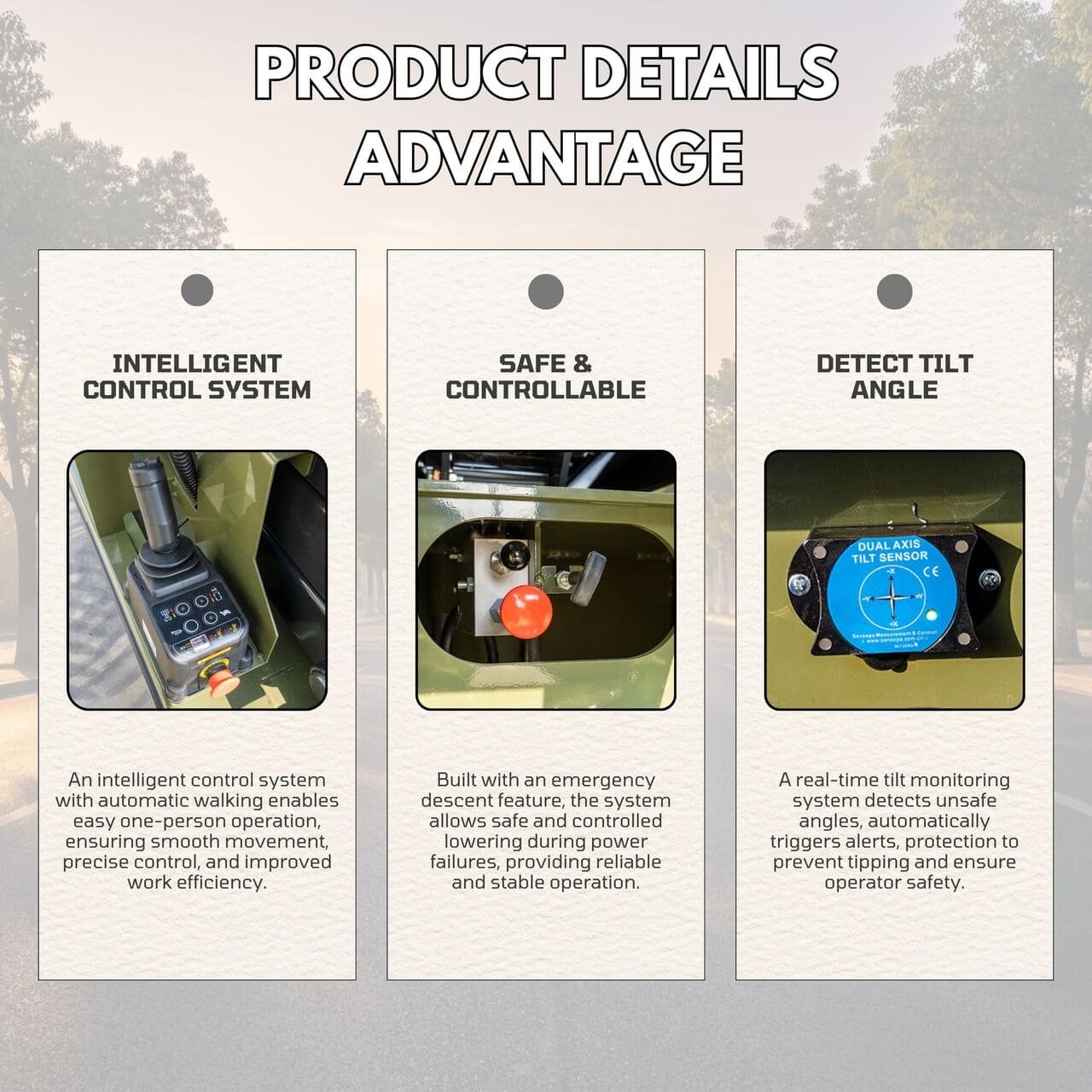

Safety Features:Built for reliable protection and safe operation, this machine is equipped with a safety maintenance support rod for secure servicing. Solid tires with integrated brakes provide stability and controlled stopping power. A fault code battery display enables quick system diagnostics and monitoring.

The main power switch supports operators as they perform immediate control of the electrical system, while the integrated power plug ensures safe and efficient charging.5. Control Features:Developed for precise and efficient operation, the intelligent control system ensures smooth handling in all working conditions. The.

Machine Matching and Use Guidance

Make sure to verify rated lifting capacity, working height, overall dimensions, power requirements, floor or terrain conditions, and the intended working environment before selecting the final configuration.
