Product Functions and Working Details

The following product-focused guide outlines the working functions, common applications, and verified technical information for TYPHON TERROR X2 MAX 2.7-Ton Mini Excavator Powerful, Yanmar Engine, Cabin with A/C & Heater, Pilot Control, Boom Swing without changing the manufacturer’s stated capabilities.

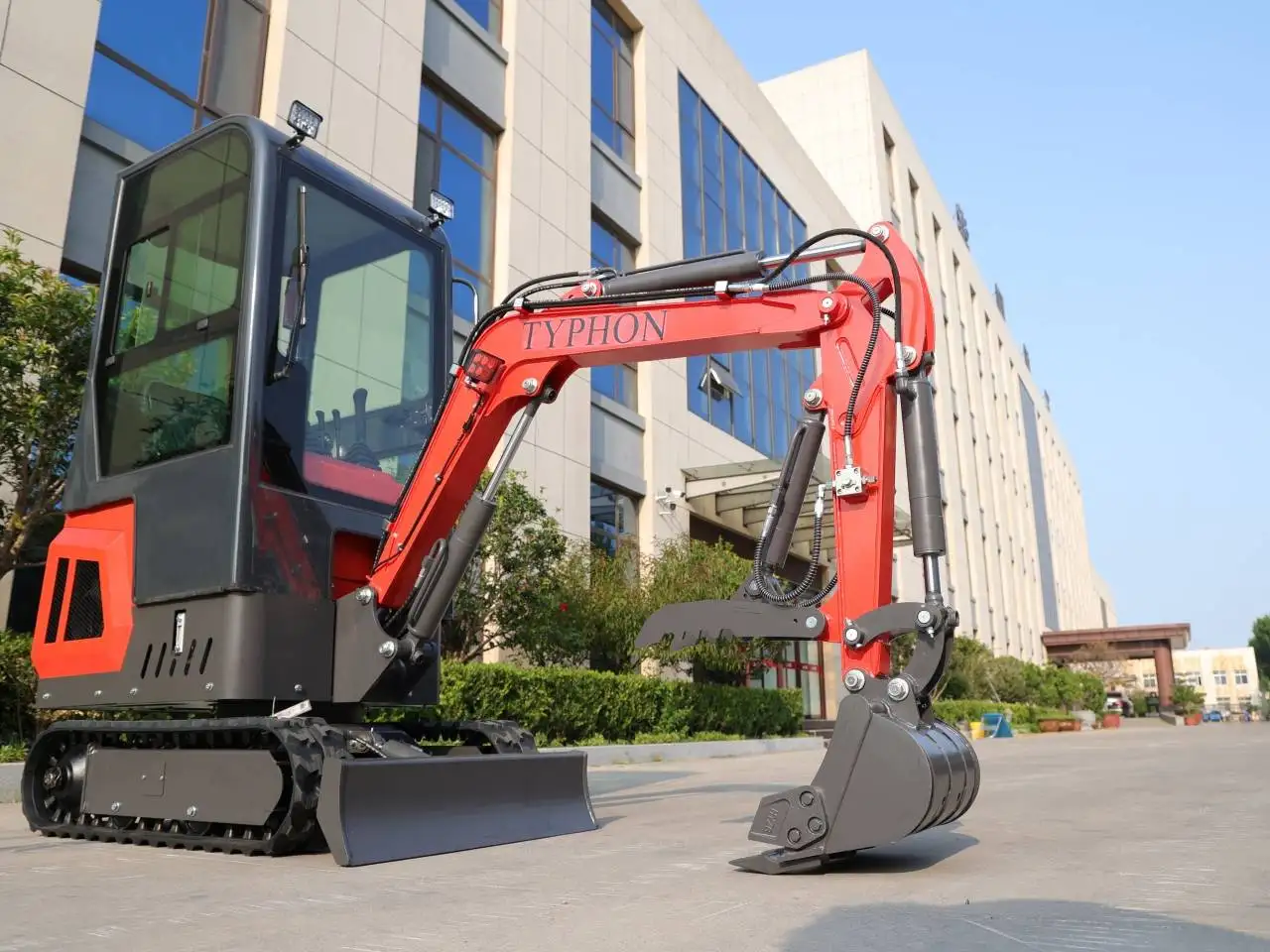

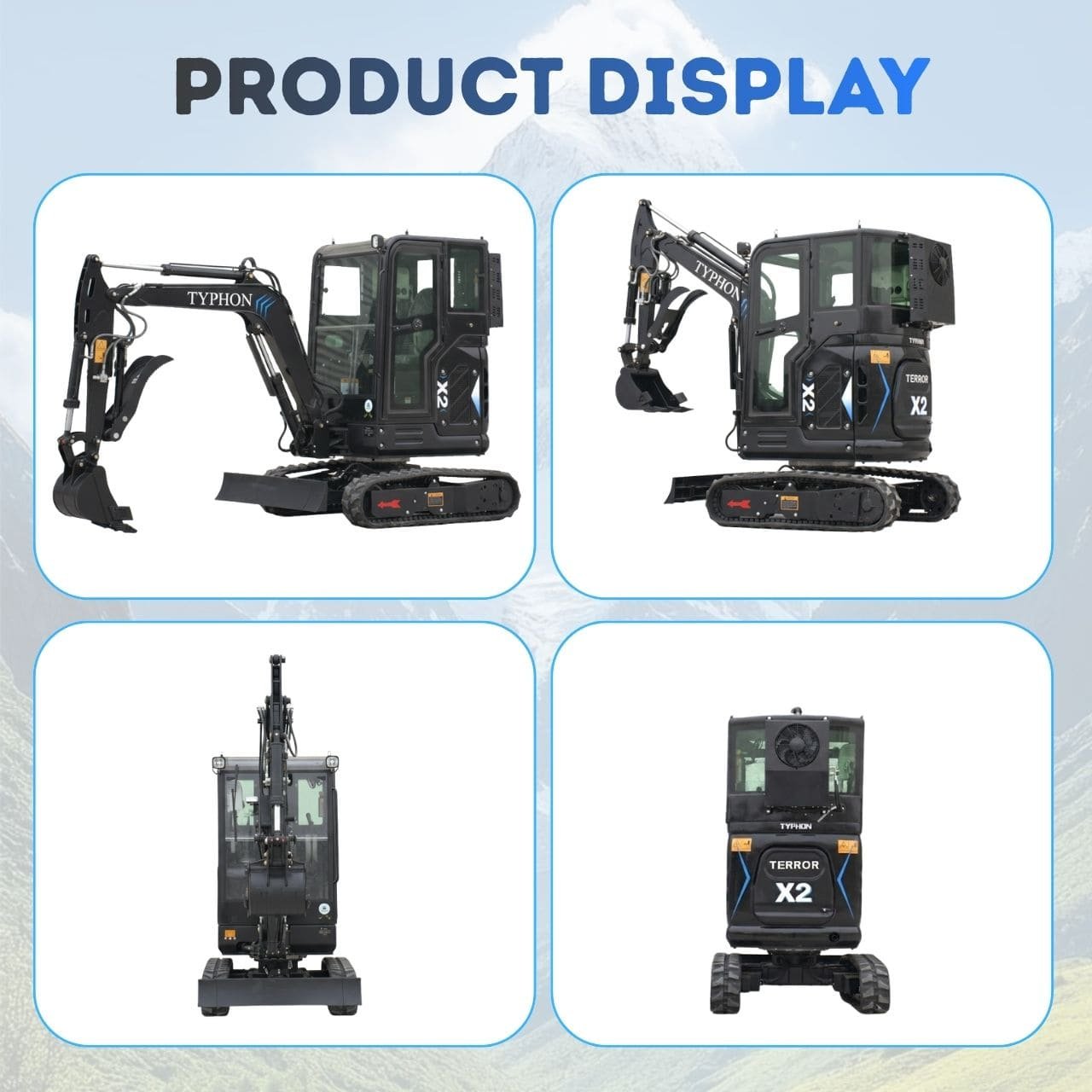

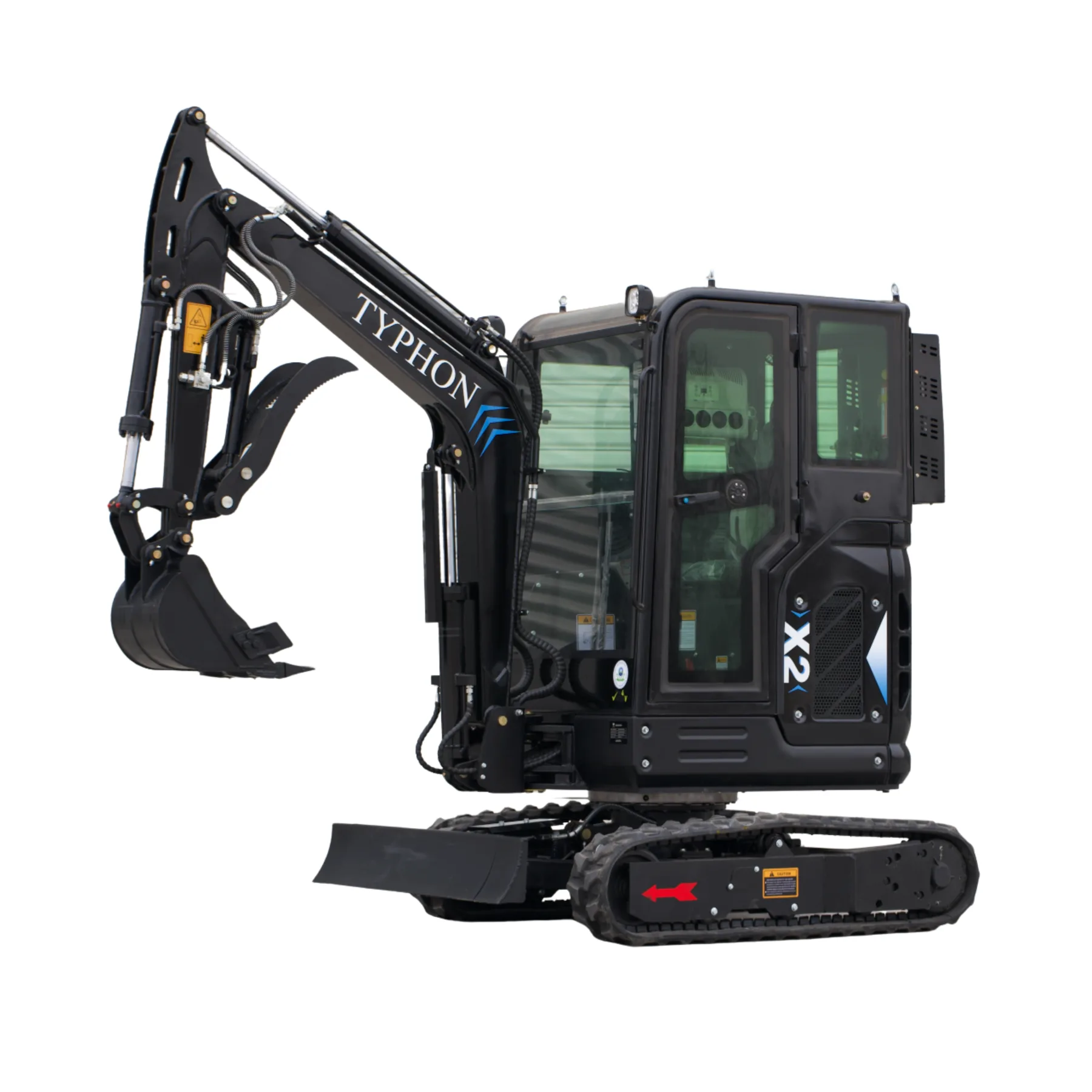

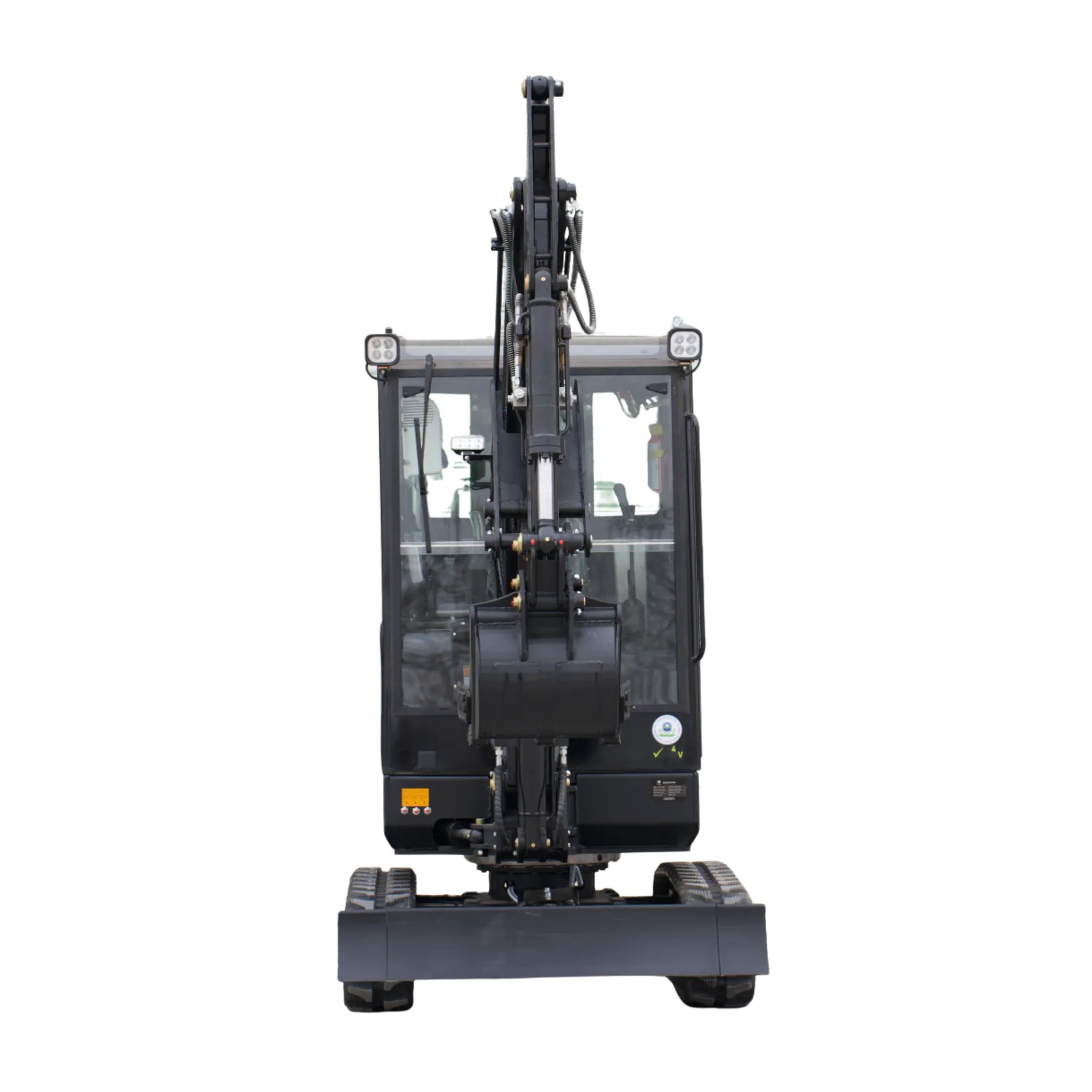

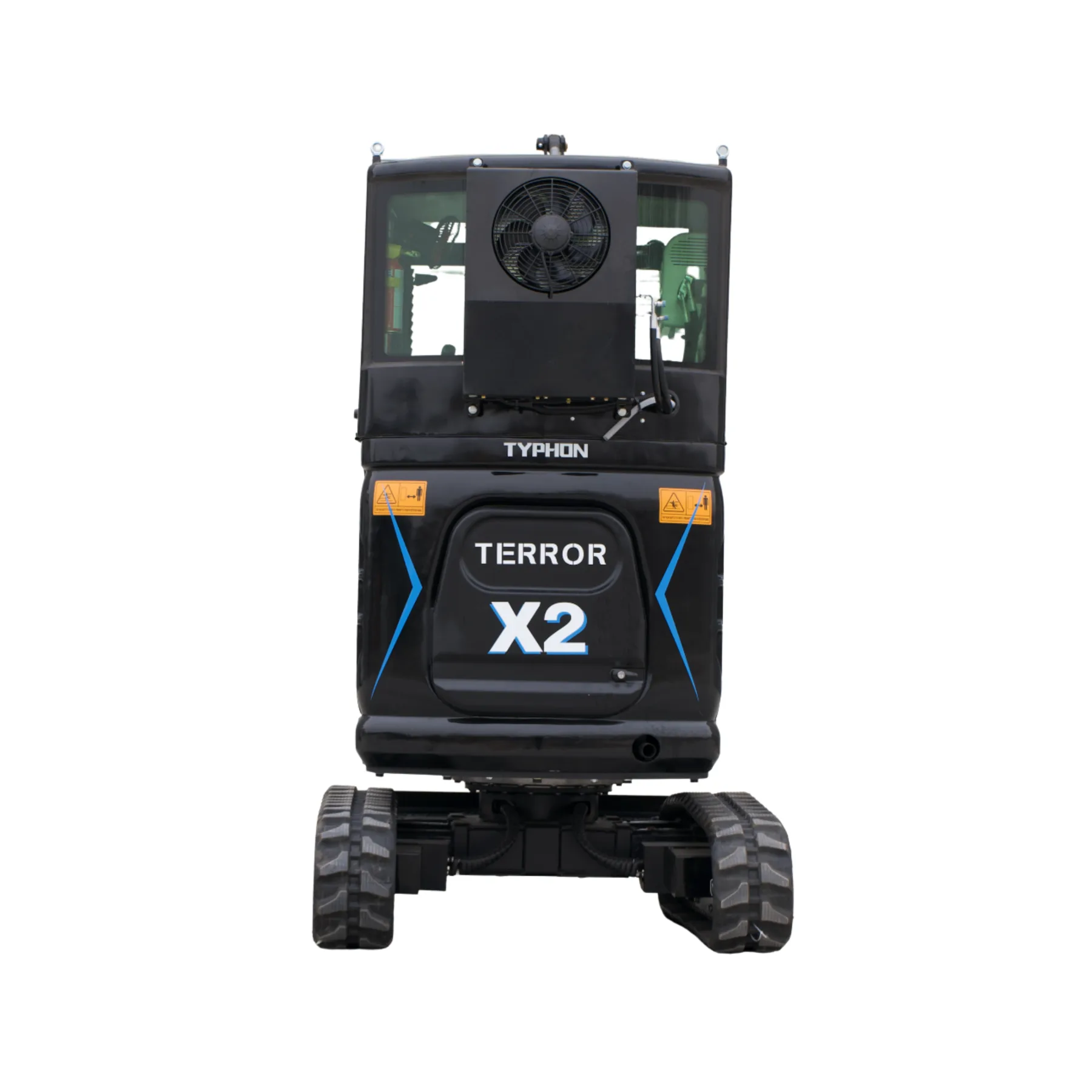

The TYPHON TERROR X2 MAX is a compact, versatile mini excavator designed for tight spaces and precision work in residential, landscaping, and small construction projects. With a 2.7 Ton working weight and a slim 1,060 mm body width, it supplies excellent stability and easy access to narrow job sites. It supplies a maximum digging depth of 2,915 mm, 360° body swing, and a 430 mm bucket for efficient and accurate excavation.

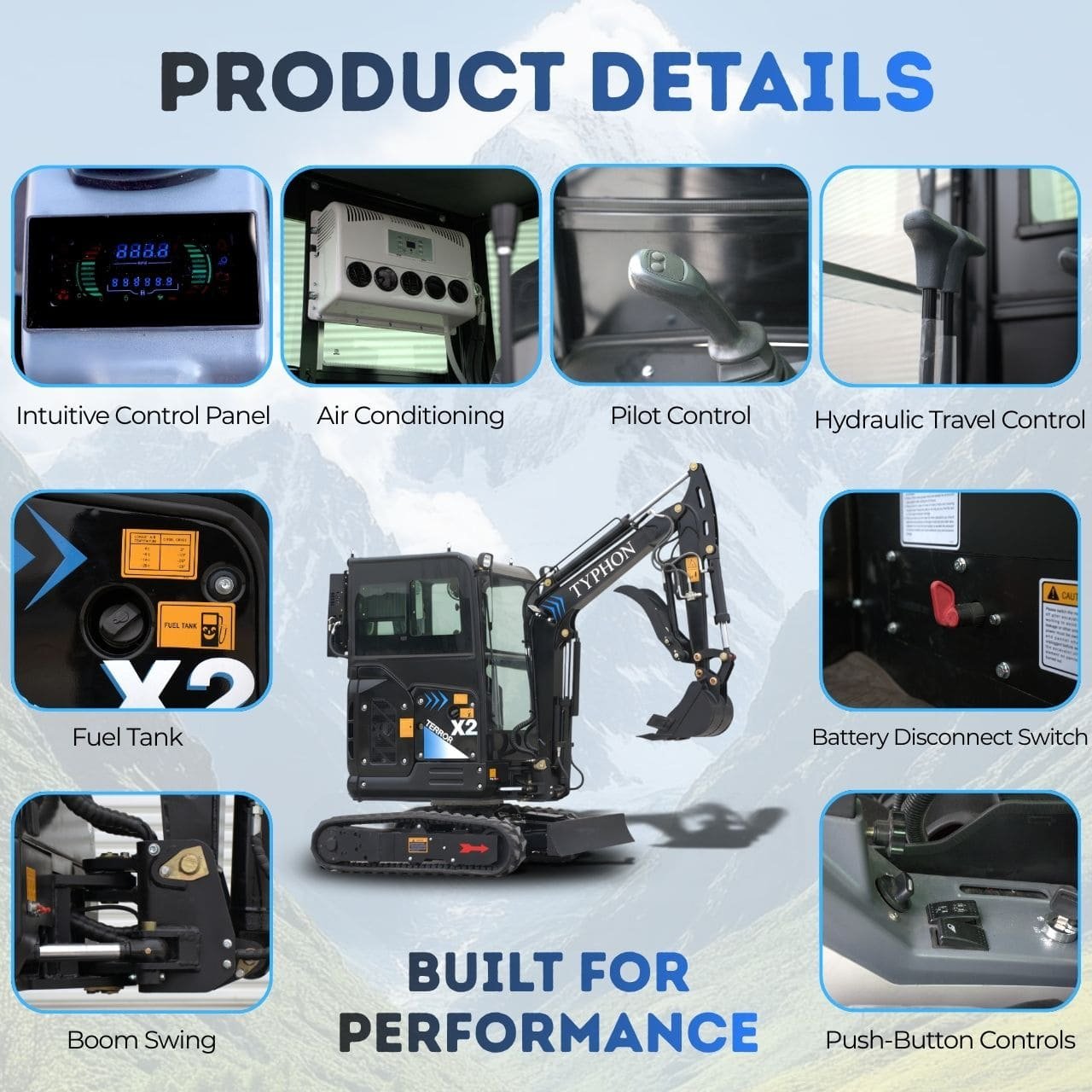

Equipped with a Danfoss traveling motor and a 0.07 m³ bucket capacity, it handles trenching, drainage, foundation work, and material handling with strong and reliable performance. Powered by a 17.3 kW Yanmar 3TNV88F diesel engine and supported by a 16 L fuel tank and 22 L hydraulic tank, the machine combines power, efficiency, and long-term durability. Operator-friendly features such as a safety lock, swing boom, track telescope switch, LED lighting, intuitive controls, and a 3.4 km/h travel speed ensure safe, precise, and efficient operation on any job site.

TYPHON TERROR X2 MAX Key Features:1. Well suited to Tight-Space Tasks:The TYPHON TERROR X2 MAX is engineered for precision work in confined environments, including residential sites, landscaping projects, utility trenches, and small construction zones. Its compact size and 1,060 mm body width allow easy access through narrow pathways while maintaining excellent stability.

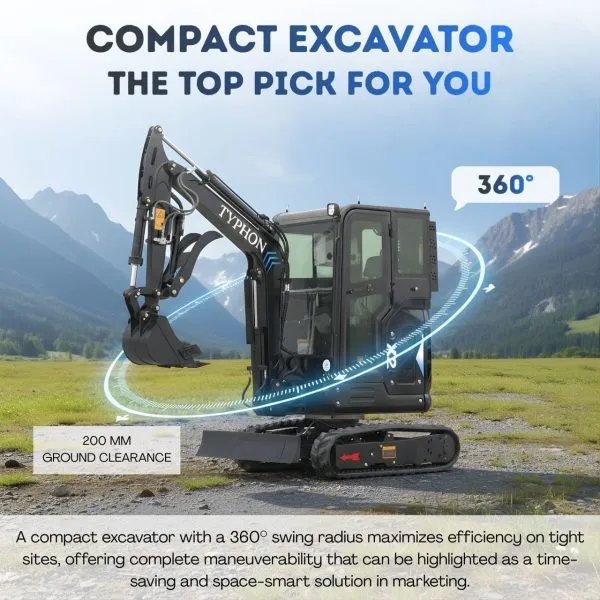

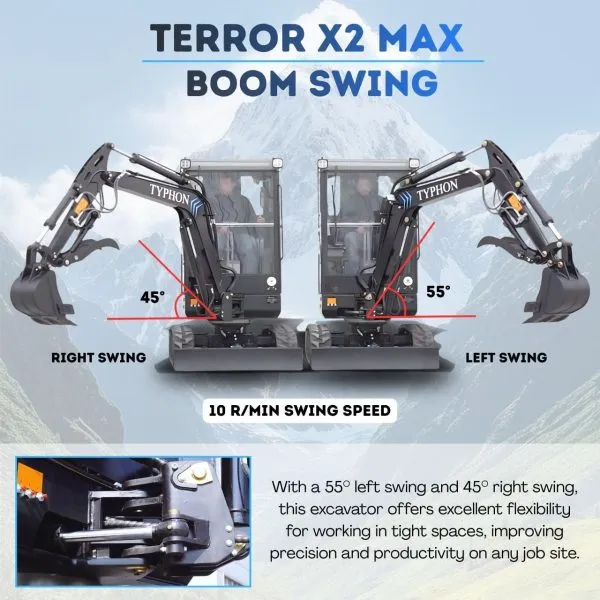

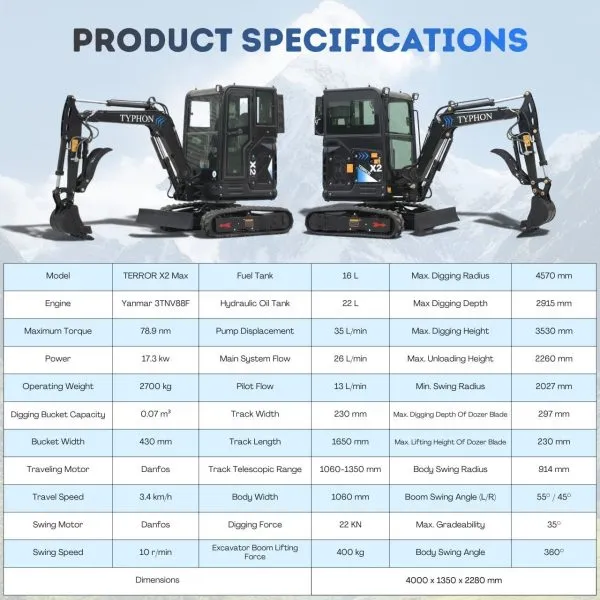

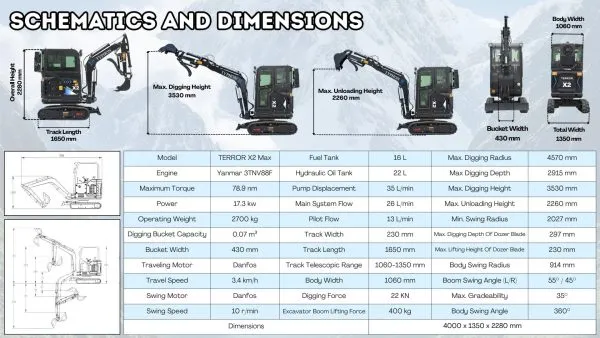

Strong digging performance is provided by a 2,915 mm maximum digging depth, 4,570 mm digging radius, and 2,260 mm maximum unloading height. The 430 mm bucket width ensures controlled excavation with high accuracy. A full 360° body swing, tight swing radius, and boom swing angle of 55° left and 45° right allow smooth operation in restricted spaces.

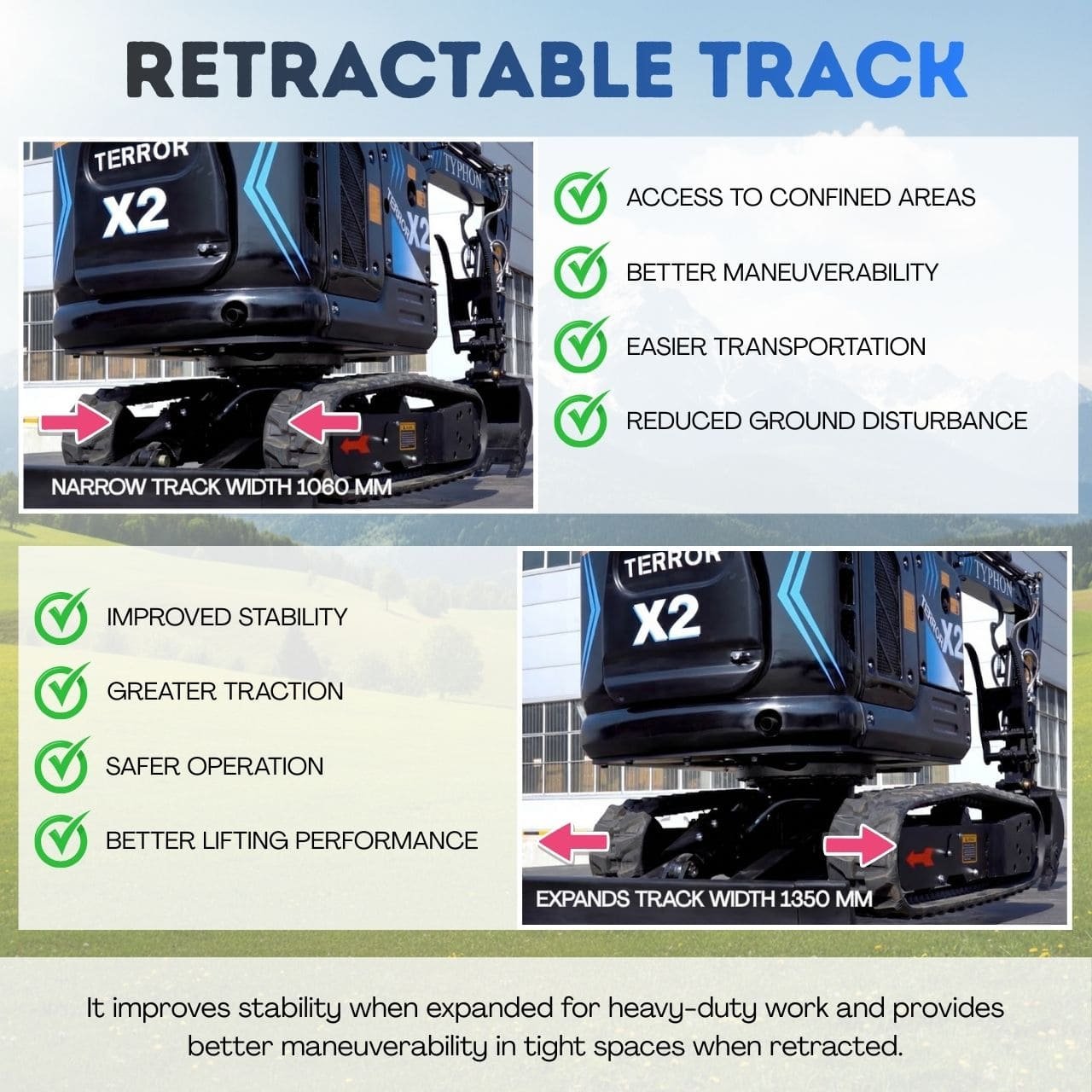

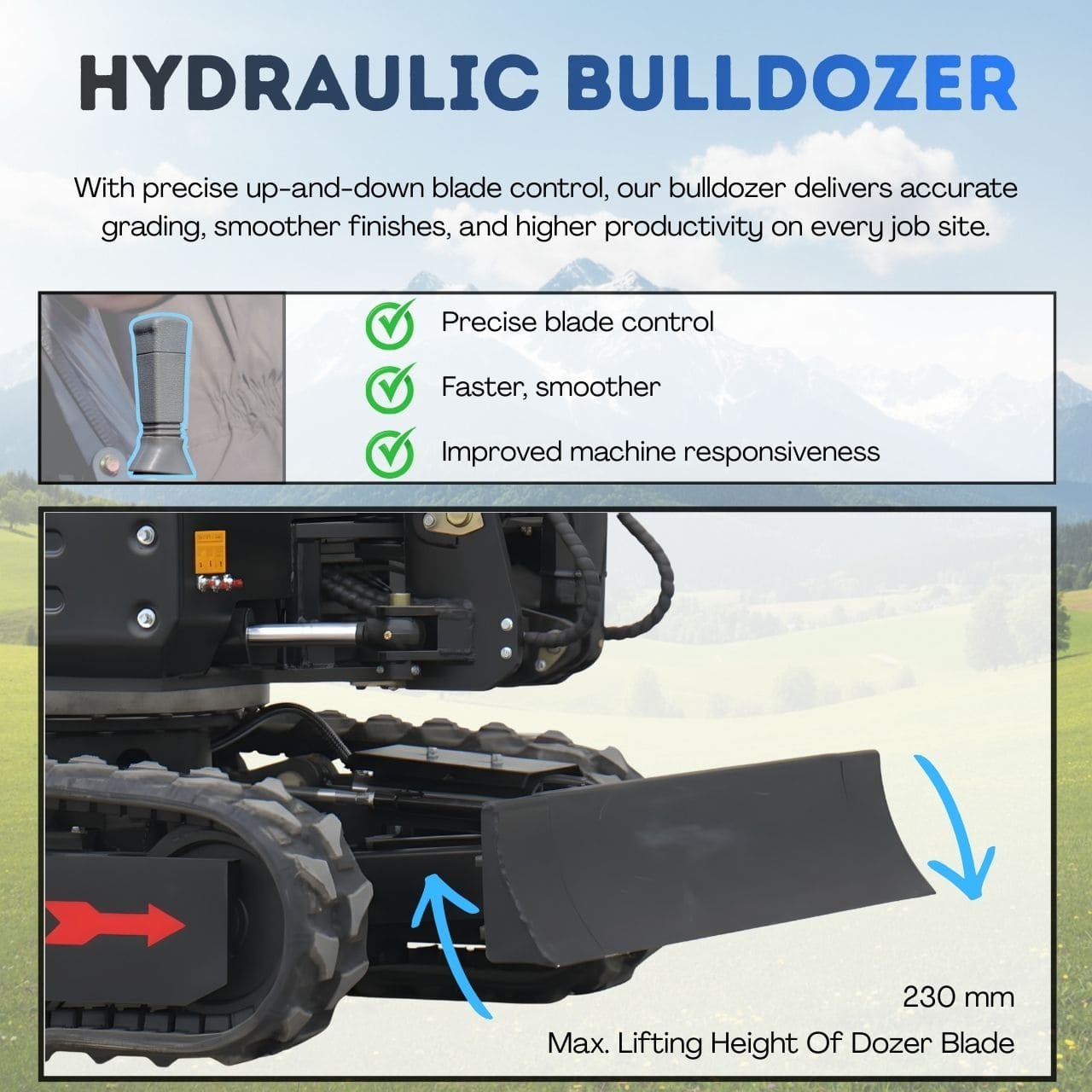

The durable undercarriage features 230 mm wide tracks with a 1,650 mm track length for reliable traction and balance. An integrated dozer blade improves grading and stability, offering a 297 mm digging depth and 230 mm lifting height. Overall dimensions of 4000 × 1350 × 2280 mm make transportation and storage simple and efficient.

2. One Machine, So Many Uses:Built to handle a wide range of tasks, the TYPHON TERROR X2 MAX supplies efficiency and reliability across different working conditions. The Danfoss traveling motor ensures smooth travel and precise control on varied terrain.

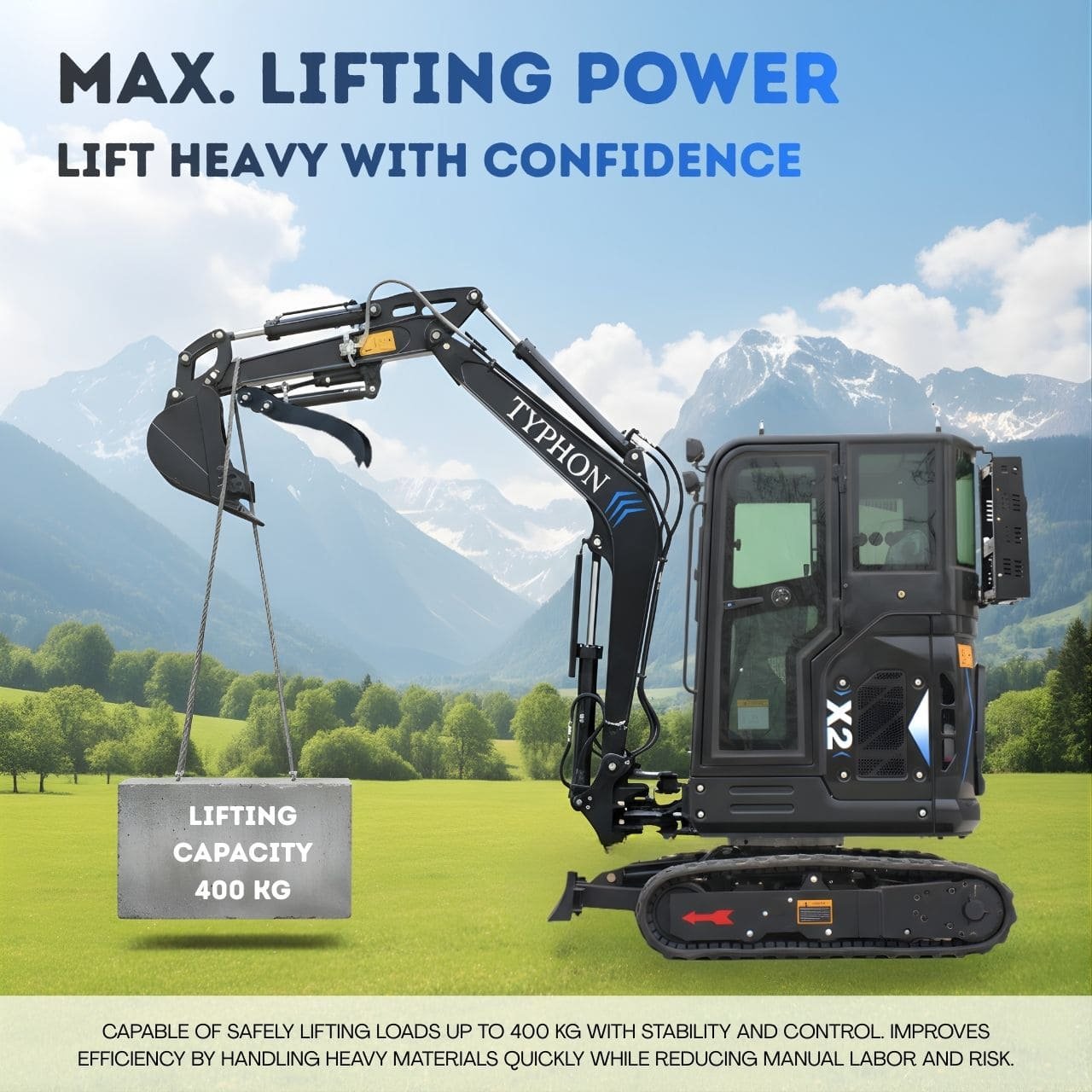

With an excavator boom lifting force of 400 kg, a digging force of 22 kN, a main system flow of 26 L/min, and a travel speed of 3.4 km/h, the machine combines strength with agility. Its 0.07 m³ bucket capacity is well-suited for trenching, landscaping, drainage, foundation work, and material handling. The machine also supports multiple attachments, enabling digging, trenching, lifting, breaking, and site cleanup.

This versatility supports operators as they perform one compact machine to complete multiple tasks efficiently, saving time, space, and working costs. 3. Strong but Compact Design:The TYPHON TERROR X2 MAX combines compact dimensions with dependable power for demanding work in limited spaces.

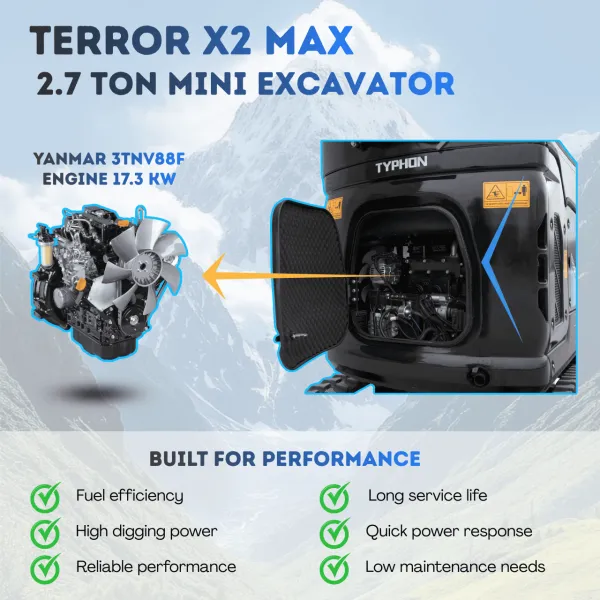

It is powered by the Yanmar 3TNV88F diesel engine, producing 17.3 kW (23.2 HP@ 2200rpm) of efficient, low-emission performance. Its 1.642-liter, 3-cylinder inline design supplies smooth operation, strong torque, and excellent fuel economy through direct injection and natural aspiration. The hydraulic system features a 13 L/min pilot flow and a high-quality Danfoss swing motor, delivering.

Main Features and Equipment Data

• Comes with 1 x standard digging excavator bucket, 1 x hydraulic oil cooler, and 1 x hydraulic thumb clip.
• Includes 1 x toolbox, 1 x cabin (AC/Heater), and 1 x digital manual with comprehensive instructions.

Machine Matching and Use Guidance

Make sure to verify the current configuration, working capacity, dimensions, included work equipment, attachment compatibility, shipping, and availability with the sales team before an order is placed.
