Product Functions and Working Details

The following product-focused guide outlines the working functions, common applications, and verified technical information for Hydraulic Pickup Sweeper Broom Attachment for TYPHON STOMP X1300 & STOMP 509 Mini Skid Steers without changing the manufacturer’s stated capabilities.

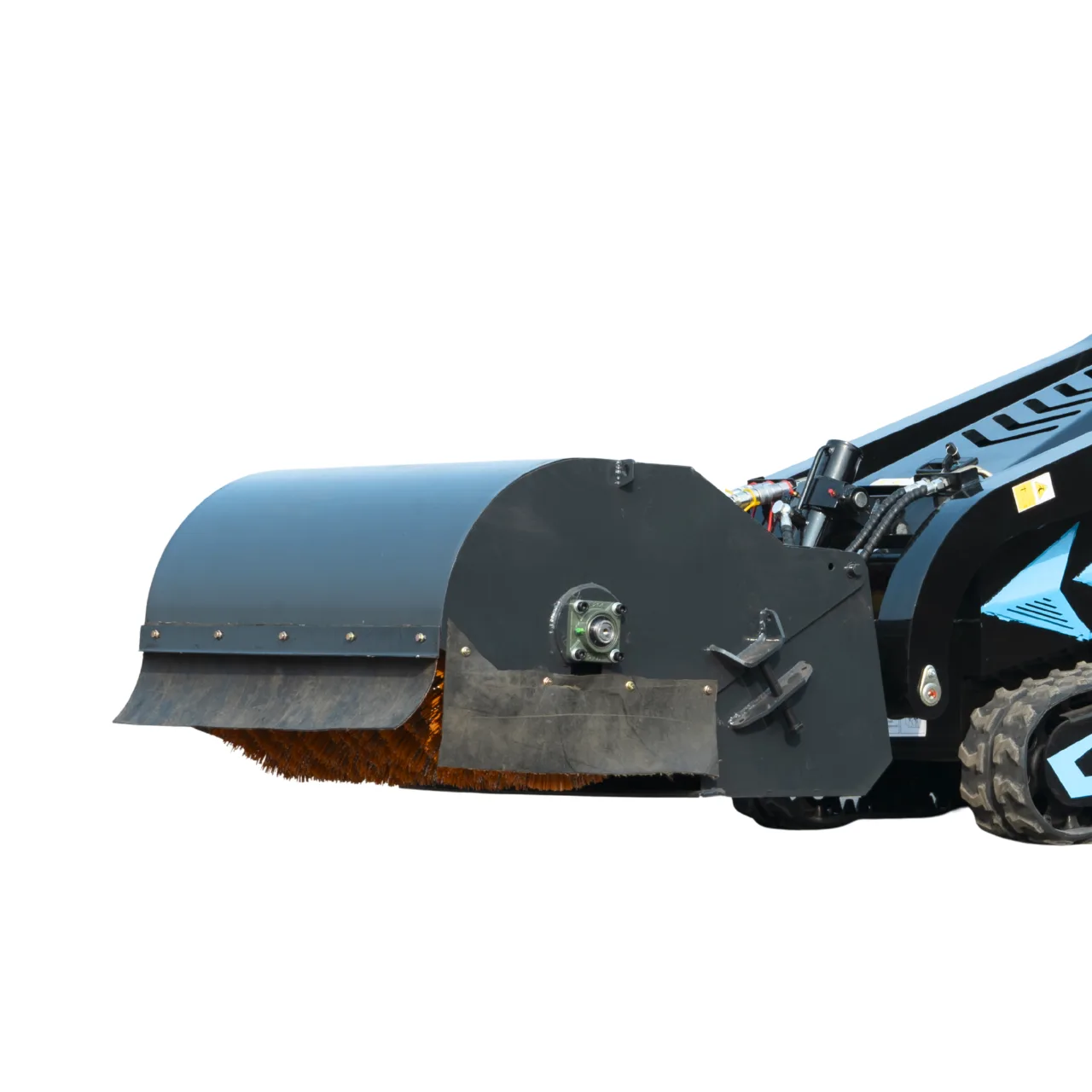

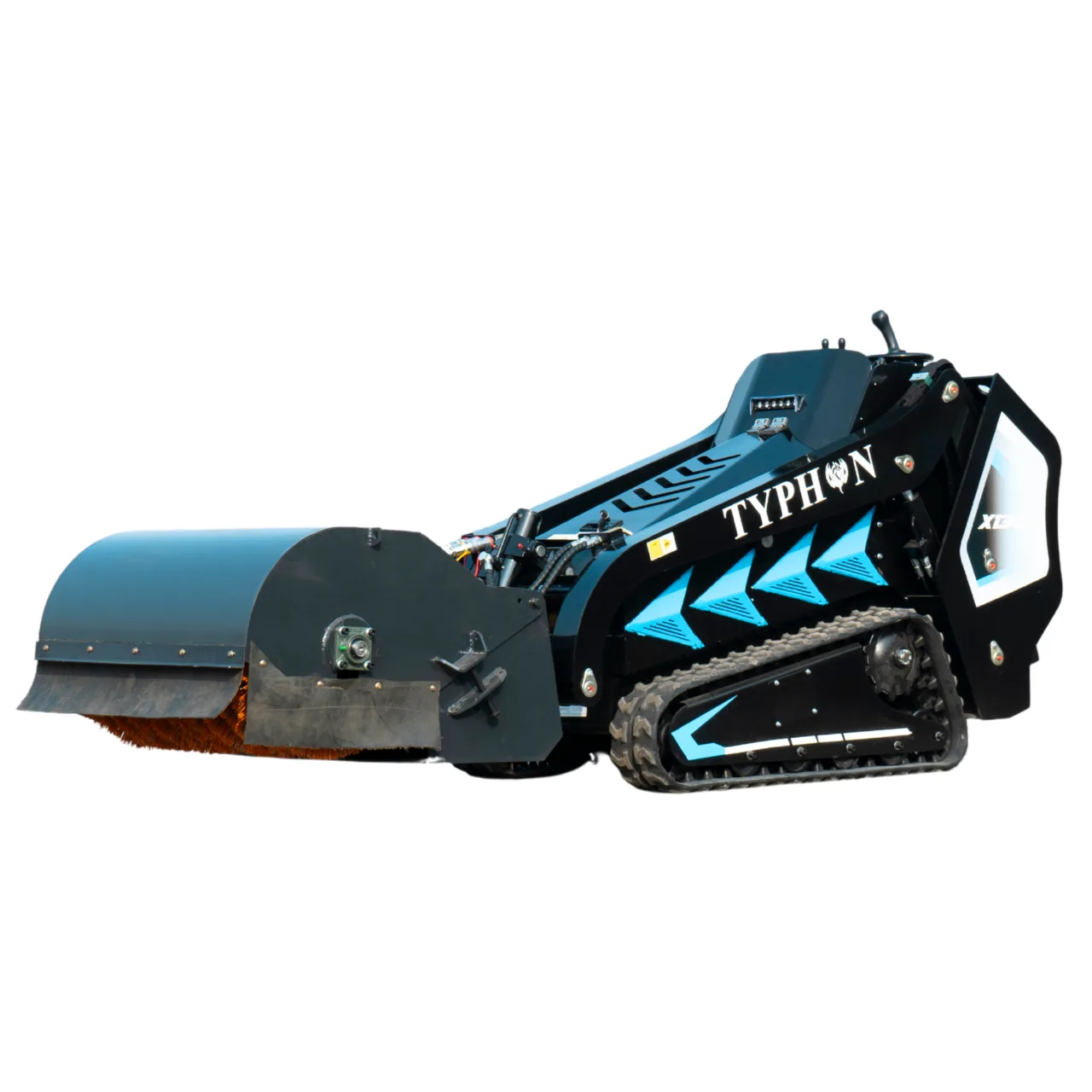

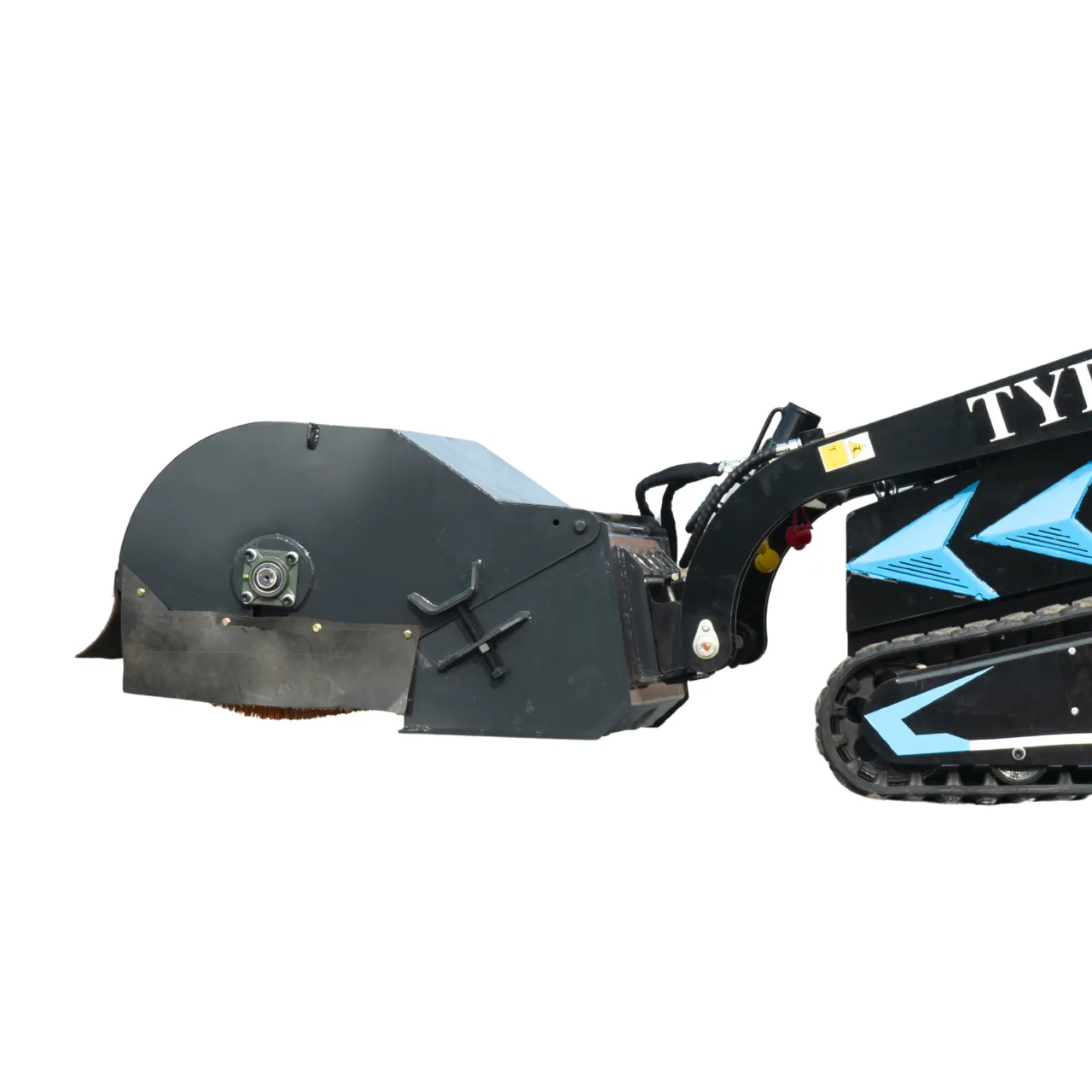

Keep your job site clean and efficient with the Hydraulic Pickup Sweeper Broom Attachment, engineered specifically for TYPHON STOMP X1300 and TYPHON STOMP 509.Developed for rugged, professional use, this hydraulic pickup broom supports operators as they perform operators to sweep and collect debris in a single pass. It efficiently removes dirt, gravel, sand, leaves, and light snow, making it a practical choice for construction sites, warehouses, farms, parking areas, and property maintenance.The powerful hydraulic-driven brush ensures consistent sweeping performance, while the compact design supplies excellent maneuverability in tight or confined spaces where larger sweepers cannot operate.Key FeaturesHeavy-duty pickup sweeper for mini skid steersSweeps and collects debris in one passWell suited to dirt, gravel, sand, and light snow removalHydraulic-powered rotating brush for efficient cleaningCompact design for superior maneuverabilityBuilt for construction, farm, warehouse, and property maintenance applicationsDirect compatibility with STOMP X1300 & STOMP 509 SpecificationsAttachment Weight: 166 kgWorking Width: 1000 mmBrush Diameter: 500 mmRequired Hydraulic Flow Rate: 10–23 L/minDimensions (L × W × H): 1300 × 1200 × 600 mmThis pickup sweeper broom attachment transforms your mini skid steer into a compact, high-performance cleanup machine saving time, reducing manual labor, and delivering professional-grade results on every job.⚠️ Compatibility Responsibility NoticeThe listed measurements and diagram apply only to the attachment’s quick-mounting plate. It is the buyer’s responsibility to confirm these dimensions match their machine’s mounting system.

We cannot guarantee fitment on machines with different mount designs.

Main Features and Equipment Data

• Heavy-duty pickup sweeper for mini skid steers
• Sweeps and collects debris in one pass
• Ideal for dirt, gravel, sand, and light snow removal
• Hydraulic-powered rotating brush for efficient cleaning
• Compact design for superior maneuverability
• Built for construction, farm, warehouse, and property maintenance applications
• Direct compatibility with STOMP X1300 & STOMP 509
• Attachment Weight: 166 kg
• Working Width: 1000 mm
• Brush Diameter: 500 mm
• Required Hydraulic Flow Rate: 10–23 L/min
• Dimensions (L × W × H): 1300 × 1200 × 600 mm

Machine Matching and Use Guidance

Before ordering, verify the host machine model, mounting dimensions, hydraulic flow and pressure requirements, attachment weight, and rated working capacity. Use the attachment only within the limits stated for the carrier machine and the selected working height.
